TELEHANDLERS

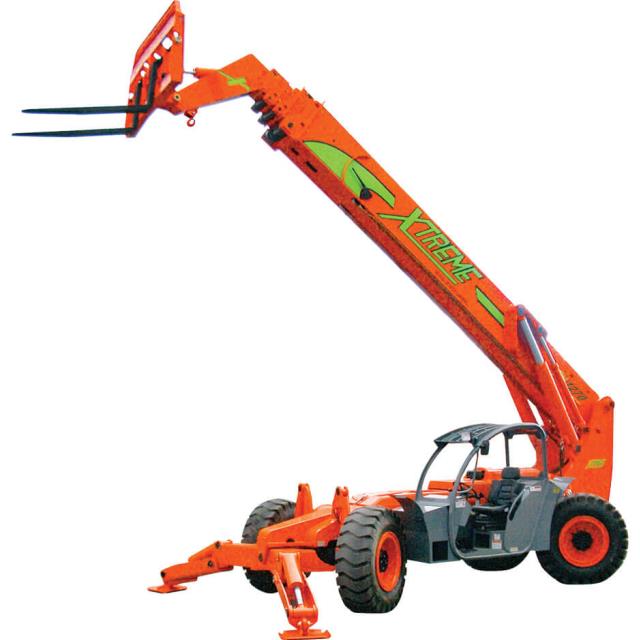

15K TELEHANDLER 70'


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Quantity:

Info
Literature

The Xtreme model 1570 has 360 operator visibility,Ductile steel manifold,Suspension seat,Easy cab mounted grab handles,Easy service access,Master disconnect switch,Protected tilt & extend cylinders with removeable boom lift point or hook, Steel hydraulic & fuel tanks,Manual lowering valve (cylinders),Long life Lexan labels,Large cross section boom,Heavy duty boom chains,Easy tie downs,Suspended pedals Y frame handle,Large capacity fuel tank,Heavy duty pre-cleaner,Trunnion mounted sway cylinders,Additional high pressure hydraulic filter,Melonite pins,Steel hood,Standard auxiliary hydraulics,Solid steel plate chassis,Steel dash,Rear axle stabilization (RAS),Center mounted powertrain,Wider outrigger stance,LONG LIFE boom rollers This is an impressive feature that allows for the absolute smoothest placement of materials, not to mention dramatically less vibrations and maintenance ,Back up alarm with light,Dual batteries,Cab step,Electrical aux hydraulic control, Class C Carriage
MAX Lifting Capacity -15,000 lbs
MAX Lift Height-70 ft
Forward Reach-53 ft 10 in
Frame Leveling L/R-8 degrees
Machine Weight-48,480 lbs
Fuel Capacity-72 gal
Tires-Foam Filled 17.5 x 25
Hydraulic Flow (per min)-49 gal
Hydraulic Pressure-4,000 psi
Hydraulic Oil Capacity-58 gal
Machine Length to fork face-26 ft 6 in
Machine Width-102 in
Machine Height-8 ft 11 in Length to fork face-26' 6" / 318"
Wheel Base-147 in
Ground Clearance-15 in
Turning Radius-15 ft 10 in
Outriggers-Yes

Also check the following item(s) related to the above:

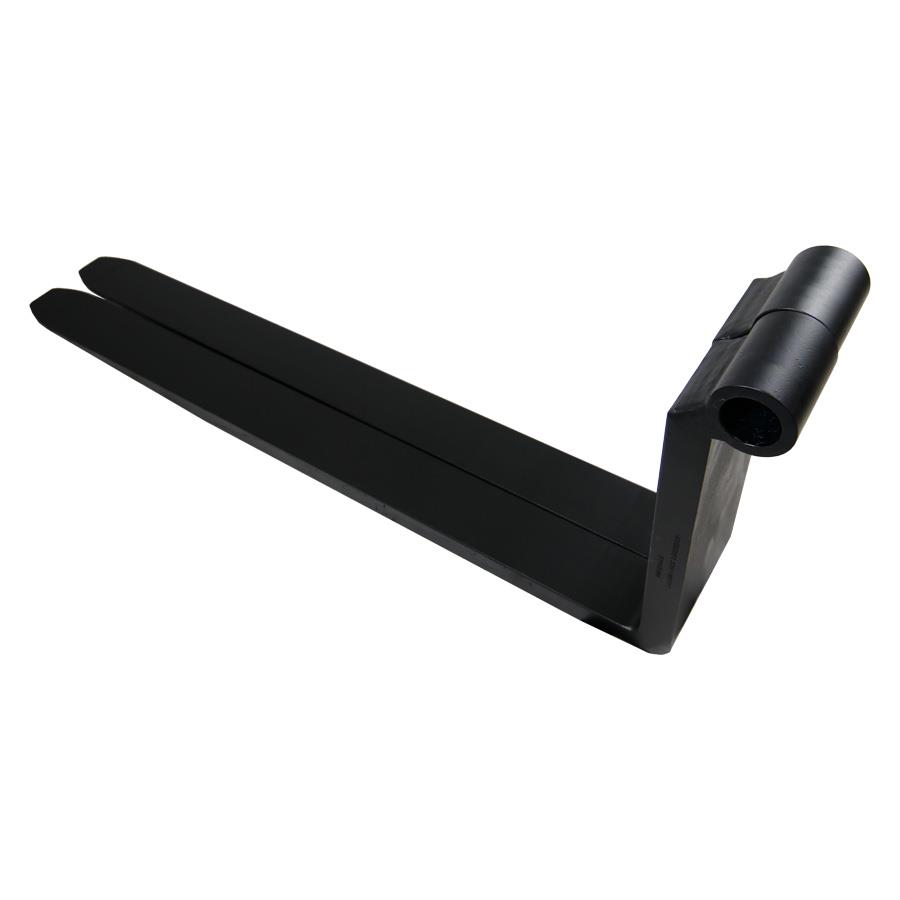

48' FORK SET 20K,CLASS C

60" FORKS SET 20K, CLASS C

96 FORKS SET 20K, CLASS C

72" FORKS SET 20K, CLASS C

SPREADER BAR 8' - 12' 10K MAX CAP

FORK MOUNT INDUSTRIAL JIB 10K 4'-12'

FORK MOUNTED LIFTING HOOK,14K MAX CAP

* Please call us for any questions on our 15k telehandler 70 foot serving Washington Boro PA, Lancaster PA & Logan OH, and all of Ohio, Maryland, Delaware, New Jersey, New York, Indiana, West Virginia and Kentucky.
