COMPACTION EQUIPMENT

47" DOUBLE DRUM VIBRATORY ROLLER

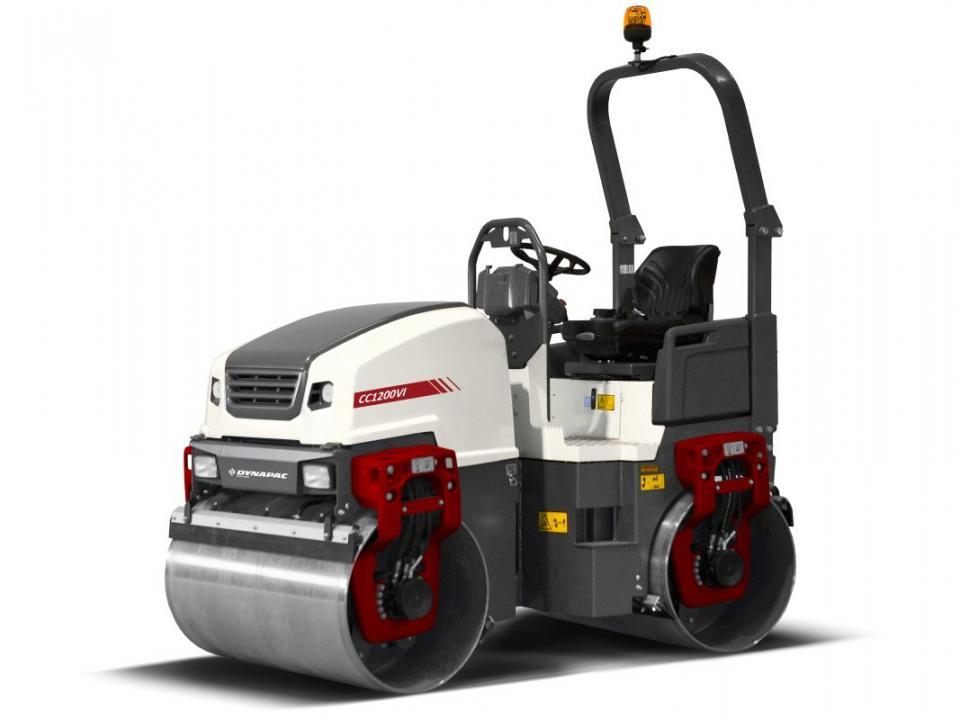

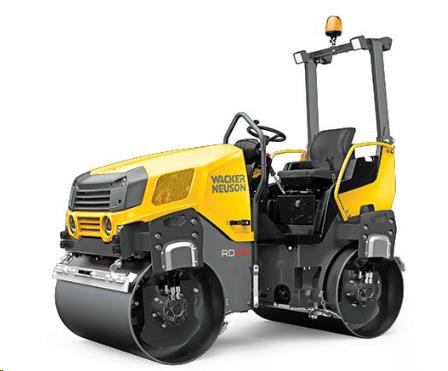

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Quantity:

Info

48" DOUBLE DRUM VIBRATORY ROLLER RENTAL
SPECS WILL VARY BY THE BRAND AVAILABLE
KEY SPECS
Operating Weight............................................................................................ lbs (kg) 5732 (2600)
Average axle load ............................................................................................. lbs (kg) 2866 (1300)
Average static linear load CECE ................................................................ pli (kg/cm) 60.7 (10.8)
Driving Characteristics (depending on site conditions)
Speed (with vibration)............................................................................. mph (kmph) 0-7.5 (0-12)
Speed (for transport) ............................................................................... mph (kmph) 0-7.5 (0-12)
Max. gradeability without/with vibration................................................................ % 40/30
Drive
Engine manufacturer..................................................................................................... Kubota
Type............................................................................................................................... D 1703 M
Tier Compliance............................................................................................................ Tier 4i
Cooling.......................................................................................................................... Water
Number of cylinders...................................................................................................... 3
Performance ISO 9249 (max) ........................................................................ hp (kW) 34.3 (25.2)
Speed (max)........................................................................................................... rpm 2700
Performance SAE J1349 (max)....................................................................... hp (kW) 33.8 (25.2)
Speed (max)........................................................................................................... rpm 2700
Throttle position 1 ................................................................................................ rpm 2200
Throttle position 2 ................................................................................................ rpm 2600
Electric Equipment.................................................................................................... V 12
Brakes
Service brake ................................................................................................................. hydrostatic
Parking brake ................................................................................................................ SAHR
Steering
Steering system.............................................................................................................. oscillating, articulating
Steering method ............................................................................................................ hydrostatic
Steering angle +/- ............................................................................................. degrees 30
Oscillating angle +/-......................................................................................... degrees 7
Track Radius, inner........................................................................................ in (mm) 103.1 (2620)
Vibratory system
Vibrating drum ............................................................................................................. f + r
Drive system.................................................................................................................. hydrostatic
Frequency ..................................................................................................... vpm (Hz) 3300/4200 (55/70)
Amplitude....................................................................................................... in (mm) 0.020 (0.52)
Centrifugal force (each drum) ....................................................................... lbs (kN) 6300/10125 (28/45)
Water Spray System
Type of water spray system............................................................................................ pressurized
Capacities
Fuel..................................................................................................................... gal (l) 10.6 (40)
Water.................................................................................................................. gal (l) 58.1 (220)

* Please call us for any questions on our 47 inch double drum vibratory roller serving Washington Boro PA, Lancaster PA & Logan OH, and all of Ohio, Maryland, Delaware, New Jersey, New York, Indiana, West Virginia and Kentucky.
