SPIDER LIFTS

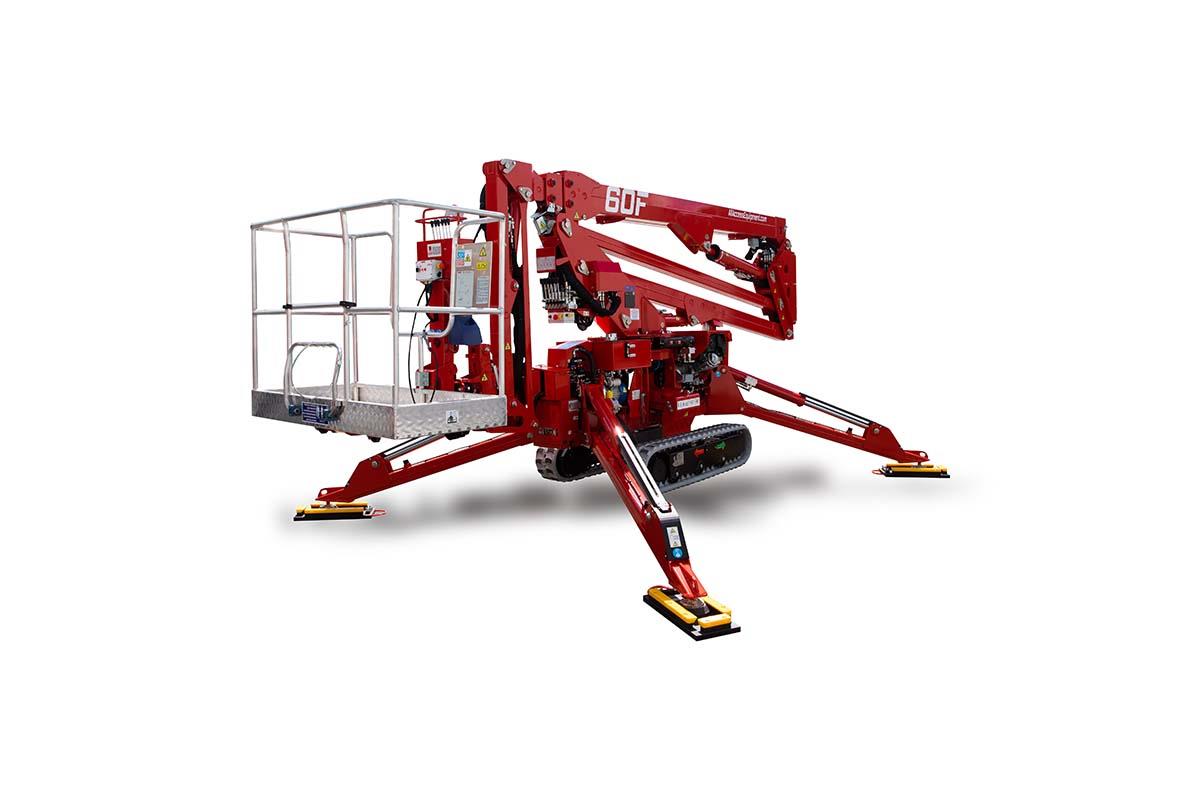

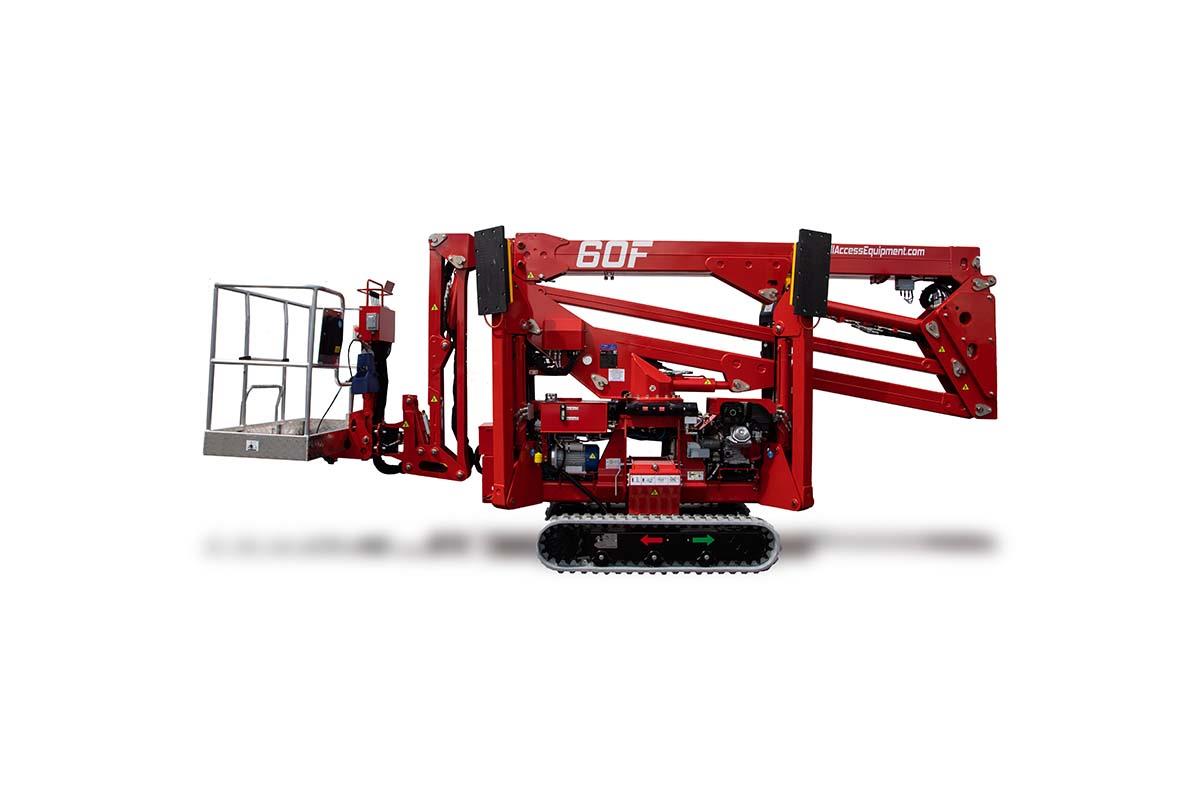

CMC 60F SPIDER LIFT/ATRIUM LIFT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Quantity:

Info

CMC 60F SPIDER LIFT RENTAL
60' PLATFORM WORKING HEIGHT.
REGULAR POINT LOAD, (NO LOAD IN BASKET)
OUTRIGGERS WITH 7" OEM ROUND PADS-61.162 PSI
OUTRIGGERS WITH 9.5"X22" ADDITIONAL PADS-6.435 PSI
OUTRIGGERS WITH 36"X36" ADDITIONAL PADS-1.037 PSI
PER TRACK-6.417 PSI
MAX POINT LOAD CALCULATIONS- ( MAX CAPACITY IN BASKET)
OUTRIGGERS WITH 7" OEM ROUND PADS-67.203 PSI
OUTRIGGERS WITH 9.5"X22" ADDITIONAL PADS-7.04 PSI
OUTRIGGERS WITH 36"X36" ADDITIONAL PADS-1.135 PSI
PER TRACK-7.00 PSI
NOTE! THIS IS NOT MAX POINT LOAD OVER ONE OUTRIGGER!
MAX POINT LOAD OVER ONE OUTRIGGER WITH MAX CAPACITY WORST SCENARIO WITH FACTORY ROUND 7" PAD- 147.847 PSI
MAX POINT LOAD OVER ONE OUTRIGGER WITH MAX CAPACITY WORST SCENARIO WITH FACTORY RECTANGLE 9.5"X22" ADDITIONAL PAD-15.492 PSI
MAX POINT LOAD OVER ONE OUTRIGGER WITH MAX CAPACITY WORST SCENARIO WITH 36"X36" ADDITIONAL PAD-2.498 PSI
NOTE; 120 VOLT ELECTRIC MODELS MUST BE VERIFIED IF IN STOCK AND AVAILABLE, IF RUNNING ON 120VOLT ELECTRIC 100' CORD IS THE MAX ALLOWED FOR PROPER OPERATIONS.

Also check the following item(s) related to the above:

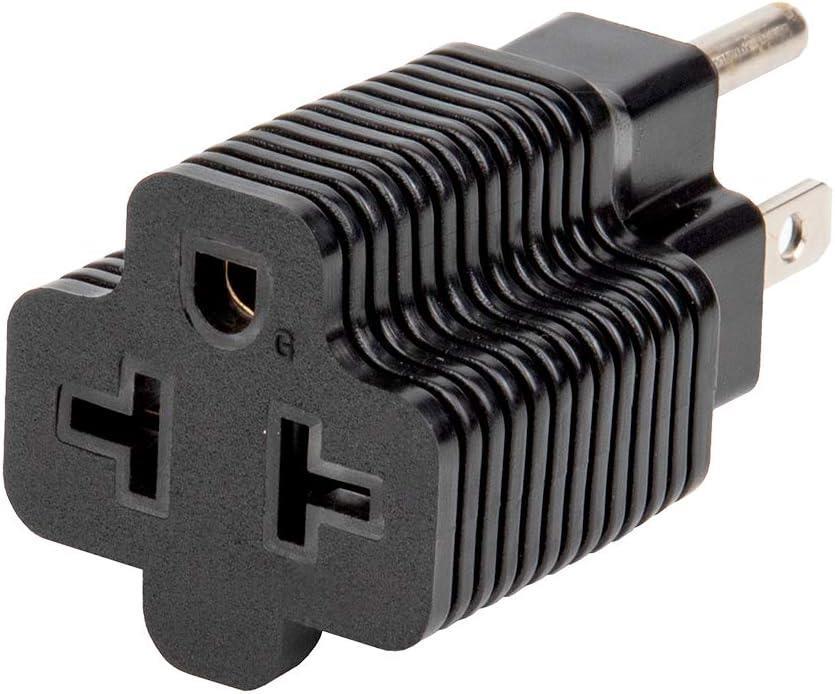

15AMP AC PLUG ADAPTER

10 GUAGE 50' 20 AMP CORD RENTAL

36" X 36" X 2" OUTRIGGER SUPPORT PAD

3'X8' GROUND MAT RENTAL PER MAT

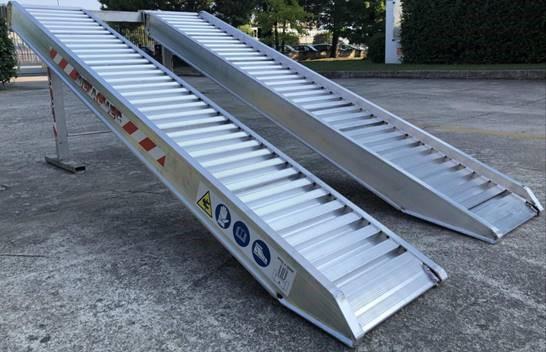

14' RAMP SET,16" WIDE 8K MAX CAP / SET

14' RAMP SET,16" WIDE 12,000 LBS MAX CAP

10 GUAGE 100' 20 AMP CORD RENTAL

* Please call us for any questions on our cmc 60f spider lift/atrium lift serving Washington Boro PA, Lancaster PA & Logan OH, and all of Ohio, Maryland, Delaware, New Jersey, New York, Indiana, West Virginia and Kentucky.
