UNIVERSAL ATTACHMENTS

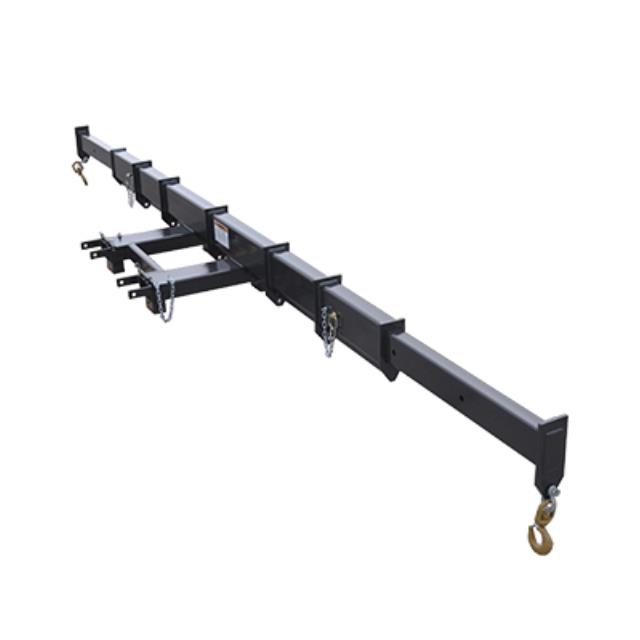

SPREADER BAR 8' - 12' 10K MAX CAP

Where to find SPREADER BAR 8  - 12   10K MAX CAP in Washington Boro PA & Logan OH

Image for reference only
Actual item may look different
Click on image for larger view

Daily: Call For Quote

Quantity:

  • The fork pockets hold the Spreader Bar at 24" on center
  • Comes equipped with two 5 ton swivel hooks
  • Fork Pockets fit tines up to 3.50" x 7.50" wide
  • Secures to your Fork Tines with a pin.
  • Available sizes, 8' to 12' , 10' to 15' , and 13' to 20'
  • Spread Lifting Capacity Weight
  • Center Position - Single Point Load 10,000 lbs. 580 lbs.
  • Point Loads @ 65.375" spread position 5,000 x 2 = 10,000 lbs.
  • Point Loads @ 97.88" spread position 4,000 x 2 = 8,000 lbs.
  • Point Loads @ 121.88" spread position 3,500 x 2 = 7,000 lbs.
  • Point Loads @ 145.88" spread position 3,000 x 2 = 6,000 lbs.
* Please call us for any questions on our spreader bar 8 foot 12 foot 10k max cap serving Washington Boro PA, Lancaster PA & Logan OH, and all of Ohio, Maryland, Delaware, New Jersey, New York, Indiana, West Virginia and Kentucky.
