FORK MOUNT INDUSTRIAL JIB 10K 4'-12'

Specs

Description

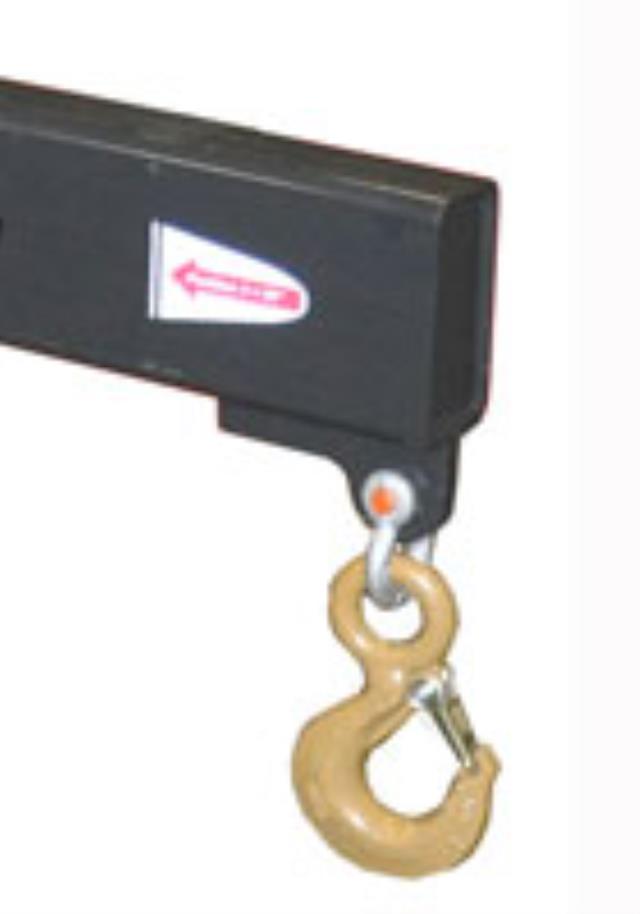

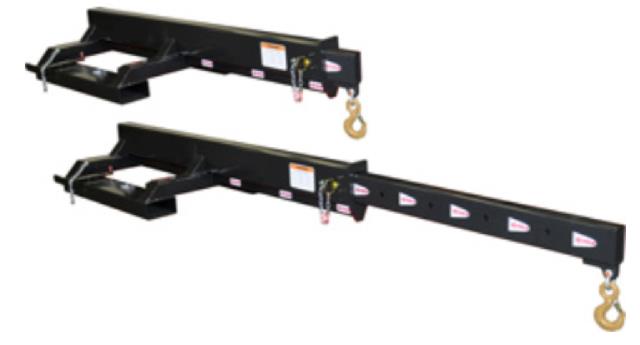

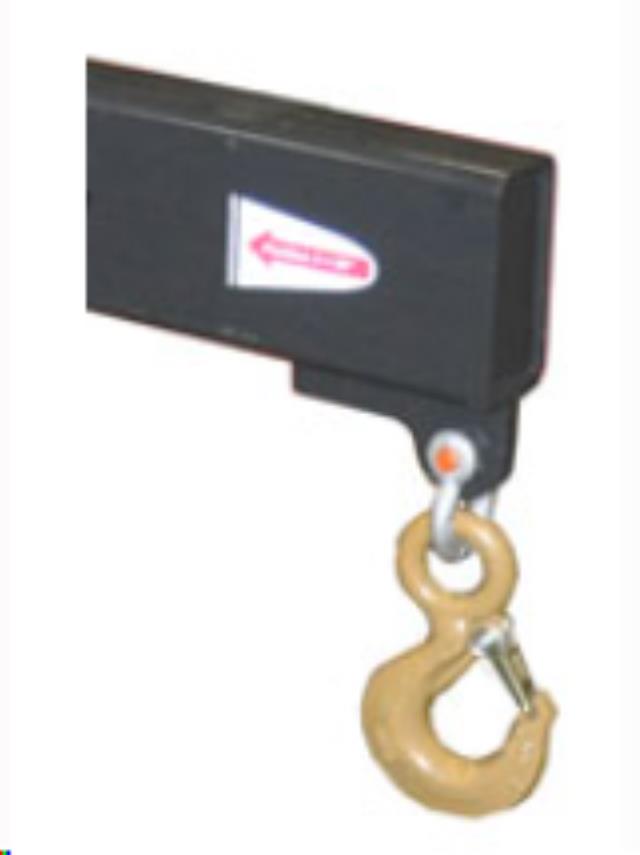

FORK MOUNTED INDUSTRIAL JIB RENTAL THIS IS A MANUALLY EXTENDABLE JIB WITH VARIOUS POSITIONS FROM 4' TO 12' EXTENSION. IT SLIDES OVER THE FORKS ON MOST EQUIPMENT WITH FORKS,WHETHER IT BE STRAIGHT MAST FORKLIFTS, TELEHANDLERS, SKID LOADERS, ETC OR ANY OTHER EQUIPMENT THAT HAS A PALLET FORKS STYLE OF ATTACHMENT. LIFTING CAPACITY IS 2,900-10,000 LB MAX CAP W/CONTINUOUS SWIVEL HOOK AND ONLY WEIGHS IN AT 640 LBS+/-. ADJUSTS FROM 4 FEET TO 12 FEET WITH 8 POSITIONS AND COMES STANDARD WITH A 5 TON CROSBY EYE HOOK AND SHACKLE. MEETS ANSI AND OSHA STANDARDS. EXTENSION DISTANCE IS EASILY ADJUSTED AND HELD WITH A HEAVY DUTY PIN AND KEEPER. POSITION INDICATORS ENSURE THE OPERATOR KNOWS THE CORRECT POSITION ON THE LOAD CHART.STANDARD POCKET SIZE IS 3.5" X 7.5" WHILE POCKET SPACING IS 22.50” ID. AND 37.50” OD. POSITIONS CAPACITY 48” 10000 lbs 66” 8000 lbs 84” 6800 lbs 96” 5350 lbs 108” 4200 lbs 120” 3800 lbs 132” 3300 lbs 144” 2900 lbs
